Post by Peter Cooper on April 11th, 2007

RailRoad: Generate model and controller diagrams for Rails applications

Typomodels

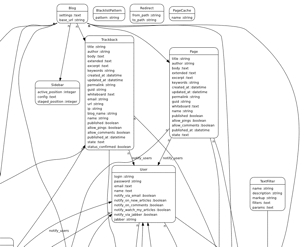

RailRoad is a Ruby application that generates model or controller diagrams for Ruby on Rails applications. It analyzes properties, inheritance, model associations, and so forth, and produces a graph description in the DOT language which can then be handled with third-party tools. The official site features several compelling examples, including model and controller maps of the Typo blogging system (as seen above).

[Post to Twitter] Tweet This

This entry was posted on Wednesday, April 11th, 2007 at 12:03 pm and is filed under Cool, Elsewhere, Ruby on Rails, Tools. Responses are currently closed, but you can trackback from your own site.

Previous Post: The “Ruby On Windows” blog
Next Post: The MOle: Spying inside your Rails applications
